Master All Environments
Cold Resistant
Perform critical tasks reliably despite frigid temperatures in environments where temperatures can plunge below -20°C (-4°F). After preheating, it can operate stably in harsh environments as low as -30° C (-22° F).
Heat Resistant
Built to withstand extreme heat, DJI Dock 3 operates and charges seamlessly even in temperatures soaring up to 50° C (122° F), ensuring efficient operations. 50° CHighest Operating Temperature
Observation Range Recording
DJI Pilot 2 can highlight the center position of the camera frame and ground area observed. It can display the surveyed area on the map, making it especially useful for patrols, and rescue operations in mountainous terrain without clear landmarks.
Wind Resistance
Both Matrice 4D and 4TD demonstrate remarkable flight performance. In winds as strong as 12 m/s, they can achieve stable takeoff and landing, and stay in the air for up to 32 minutes.
Rugged and Dependable
Dock 3's design safeguards its internal systems from external conditions by encapsulating electronic components, allowing for seamless operations even in harsh environments. IP56DJI Dock 3. IP55DJI Matrice 4D/4TD
Low-Noise and Anti-Ice Propellers
Standard equipped with low-noise anti-ice propellers, the Matrice 4D and 4TD drones can maintain stable flight even in freezing rain. The silent design reduces noise during operations.
Flexible Deployment, Ultra-Long Transmission
Fixed-Mounted Deployment
The new D-RTK 3 Relay Fixed Deployment Version offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.
Near High-Rise Buildings
Installing the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.
Near Communication Towers
Deploying the D-RTK 3 Relay on a nearby communication tower can significantly enhance signal quality during Dock 3 operations, ensuring safe takeoffs and landings even in environments with interferences from the communication tower.
Mobile Vehicle-Mounted Deployment
DJI Dock 3 is DJI's first Dock to support mobile vehicle-mounted deployment. Optimized for this purpose, the Dock's overall structure, components, and air conditioning have undergone vehicle vibration testing, with new features such as horizontal calibration and cloud-based dock location calibration. For emergency operations or long-distance inspections, using DJI Dock 3 Vehicle-Mounted Gimbal Mount [4] for mobile deployment provides a convenient solution when fixed deployment is impractical in temporary scenarios.
High-Performance Drones

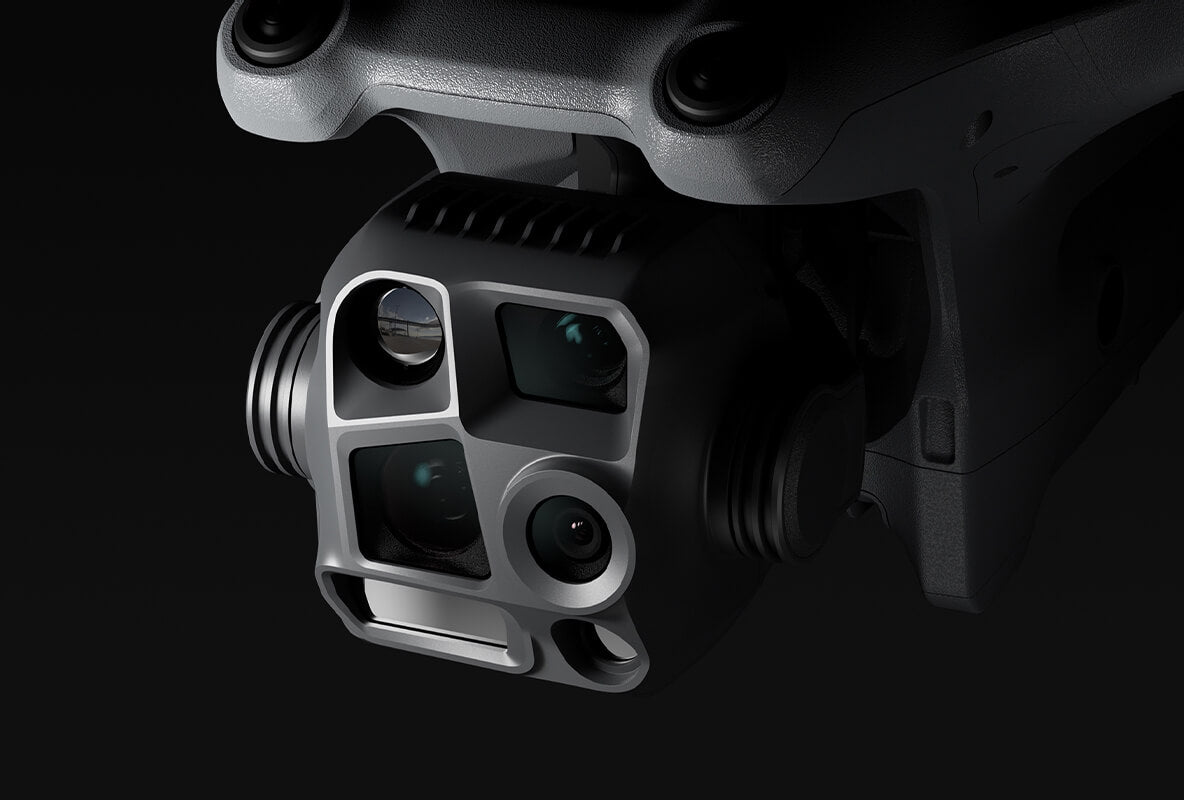

DJI MATRICE 4TD
Wide-Angle Camera
1/1.3-inch CMOS, 48MP Effective Pixels, f/1.7, 24mm Format Equivalent
Medium Tele Camera
1/1.3-inch CMOS, 48MP Effective Pixels, f/2.8, 70mm Format Equivalent
Tele Camera
1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm
Laser Range Finder
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique
Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 +
0.0015 × D) [1]
NIR Auxiliary Light
6° FOV, 100m Illumination Distance
Infrared Thermal Camera
640×512 Resolution, f/1.053mm Format Equivalent, Uncooled VOx Microbolometer, Supports UHR Infrared Image mode

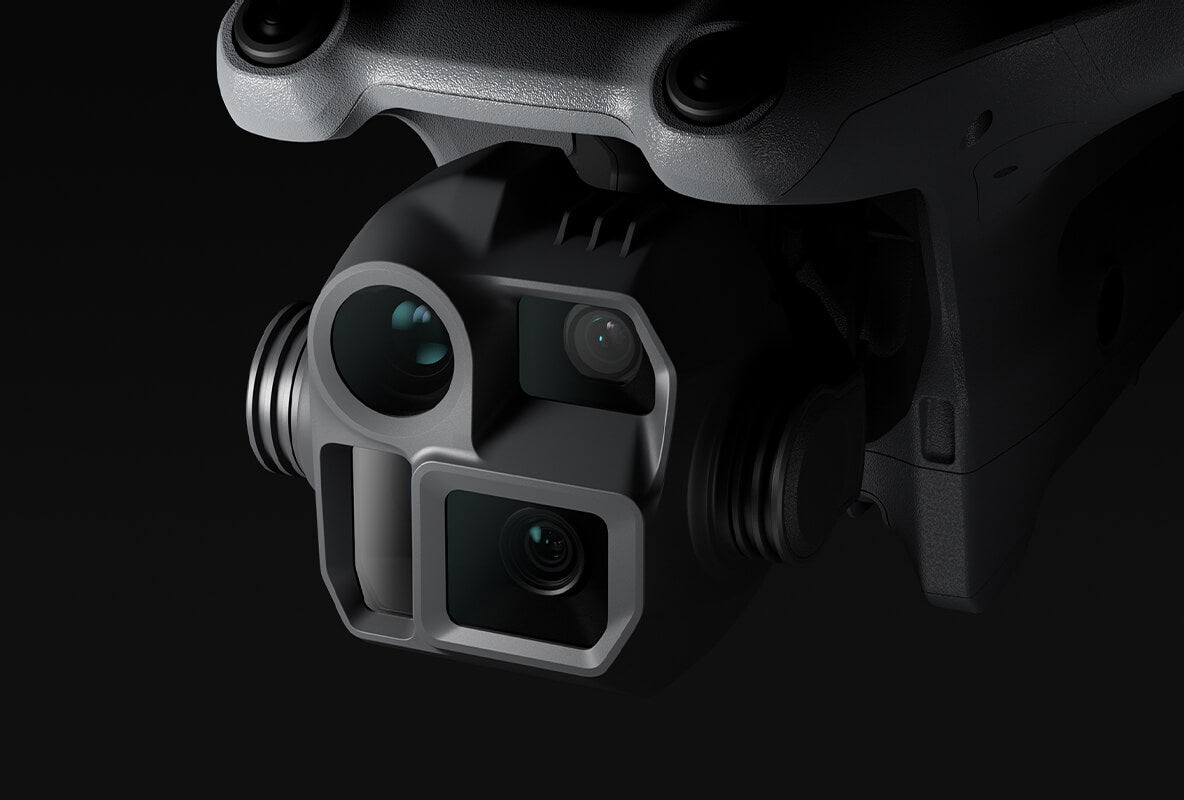

DJI MATRICE 4D
Wide-Angle Camera
4/3 CMOS, 20MP Effective Pixels, f/2.8-f/11, Format Equivalent: 24 mm, Mechanical Shutter
Medium Tele Camera
1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm
Tele Camera
1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm
Laser Range Finder
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique
Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 +
0.0015 × D) [1]
Obstacle Sensing for Safe Operation
The Obstacle Sensing Module for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.
Excels in Low-Light Environments
When the DJI RC Plus 2 Enterprise remote controller is connected to the internet, it can load terrain elevation maps and preload detailed maps. This enables automatic path planning for obstacle avoidance, effectively managing scenarios such as flying at night or through mountainous areas, ensuring the safety of flight operations. The drone has a 5-directional vision assist view system along with downward vision, which aids in providing comprehensive visibility for enhanced protection.
Clear Vision and Stable Images
Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilization. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations. [16]The 48 MP tele camera captures details, like signs, from up to 250 m away. [17] When using Matrice 4TD's tele camera as the aircraft is hovering in a windless environment, the gimbal can tilt upwards by 80 degrees, making bridge underside defects clearly visible.Upgraded stabilization keeps foreground subjects clear during telephoto shots at 10x zoom or higher.
High-Precision Surveying
Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, [5][18], and real-time terrain following to meet various mapping requirements.DJI FlightHub 2 has been upgraded for Matrice 4D/4TD operations. This upgrade introduces a range of flight route planning options, including Smart 3D Capture routes [5], geometric routes, and slope routes, enhancing efficiency while ensuring detailed modeling.
Seamless Airborne Relay for Mountainous Terrains
Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, ensuring smooth video transmission without a 4G signal or in obstructed conditions. This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.
DJI FlightHub 2 Intelligent Features
Automated Routes
The new intelligent change detection feature enables efficient periodical analysis of changes in an area, assisting operators in environmental protection, natural disaster relief and crack detection for more effective and informed decision making.
Intelligent Change Detection
The new intelligent change detection feature enables efficient periodical analysis of changes in an area, assisting operators in environmental protection, natural disaster relief and crack detection for more effective and informed decision making.
Smart Track
Operators can utilize the powerful auto-zoom capabilities of the Matrice 4D Series to quickly track a subject, such as a vehicle or a vessel for efficient follow-up review.
Virtual Cockpit
The Virtual Cockpit remote control interface has been significantly enhanced with the introduction of the new Mouselook feature. This enhancement allows the drone to adjusts its attitude and gimbal orientation automatically, enabling rapid and precise centering of the frame, thus achieving "point and see."
Efficient Operation
Open and Fly
Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 1 km away and at 100m height within 100seconds.
Low-Latency Live View
Engine upgrade significantly reduces live view latency on FlightHub 2, providing reliable support for real-time decision-making.
Transmit While Flying
In emergency scenarios, real-time data transmission and rapid modeling can be achieved during flight. Data transfer can be completed immediately uponlanding,[20]and a rough model can be quickly generated via the cloud, significantly enhancing efficiency.
Security Compliance

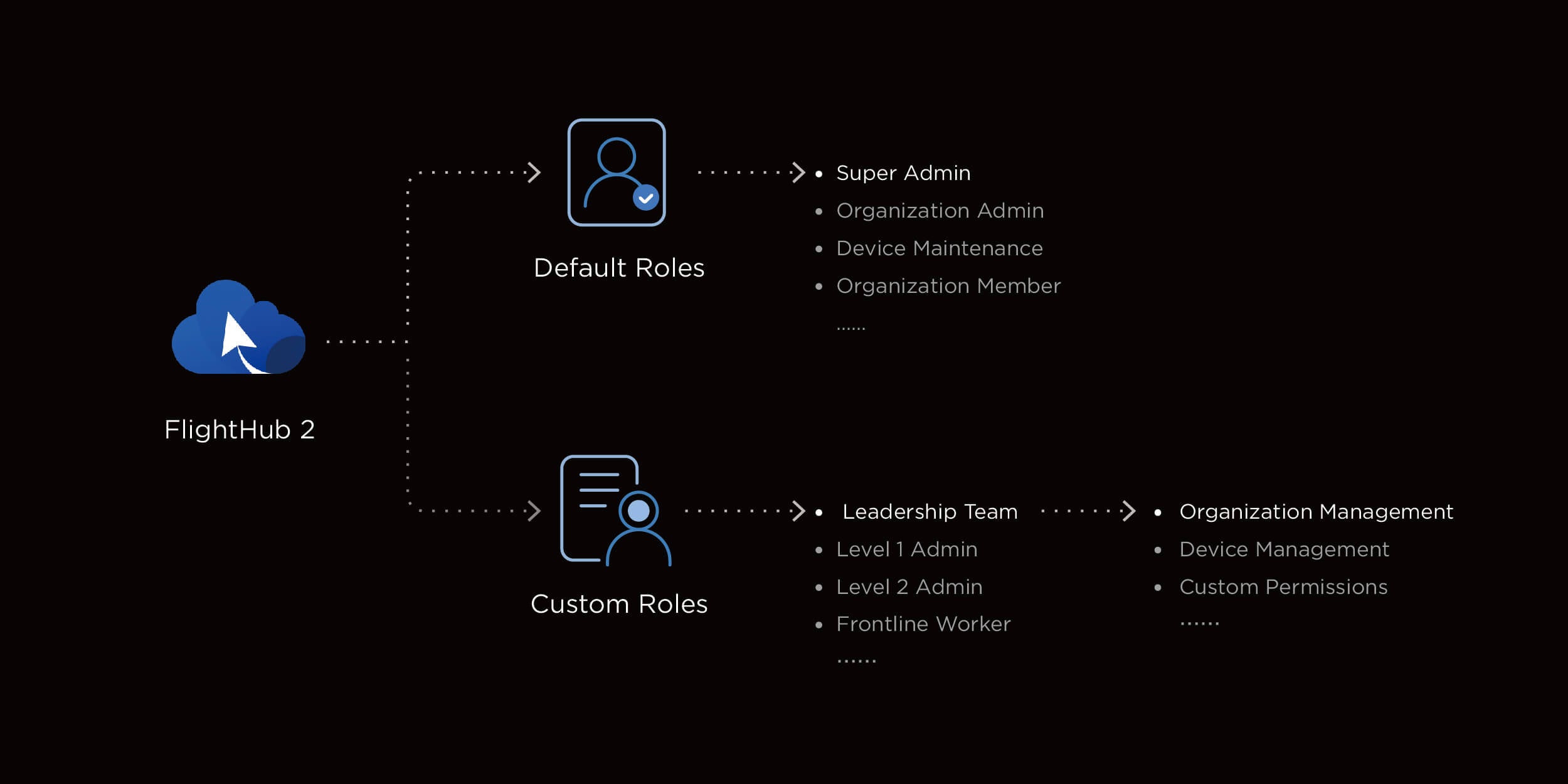

FlightHub 2 Custom Permission Management
FlightHub 2 has upgraded its permission management, allowing users to configure management permissions according to actual needs.
FightHub 2 Achieves ISO 27001 Certification
FlightHub 2 uploads, stores and manages data on Amazon Web Services (AWS) cloud servers, which are also ISO/IEC 27001 certified, ensuring secure and compliant data processing.

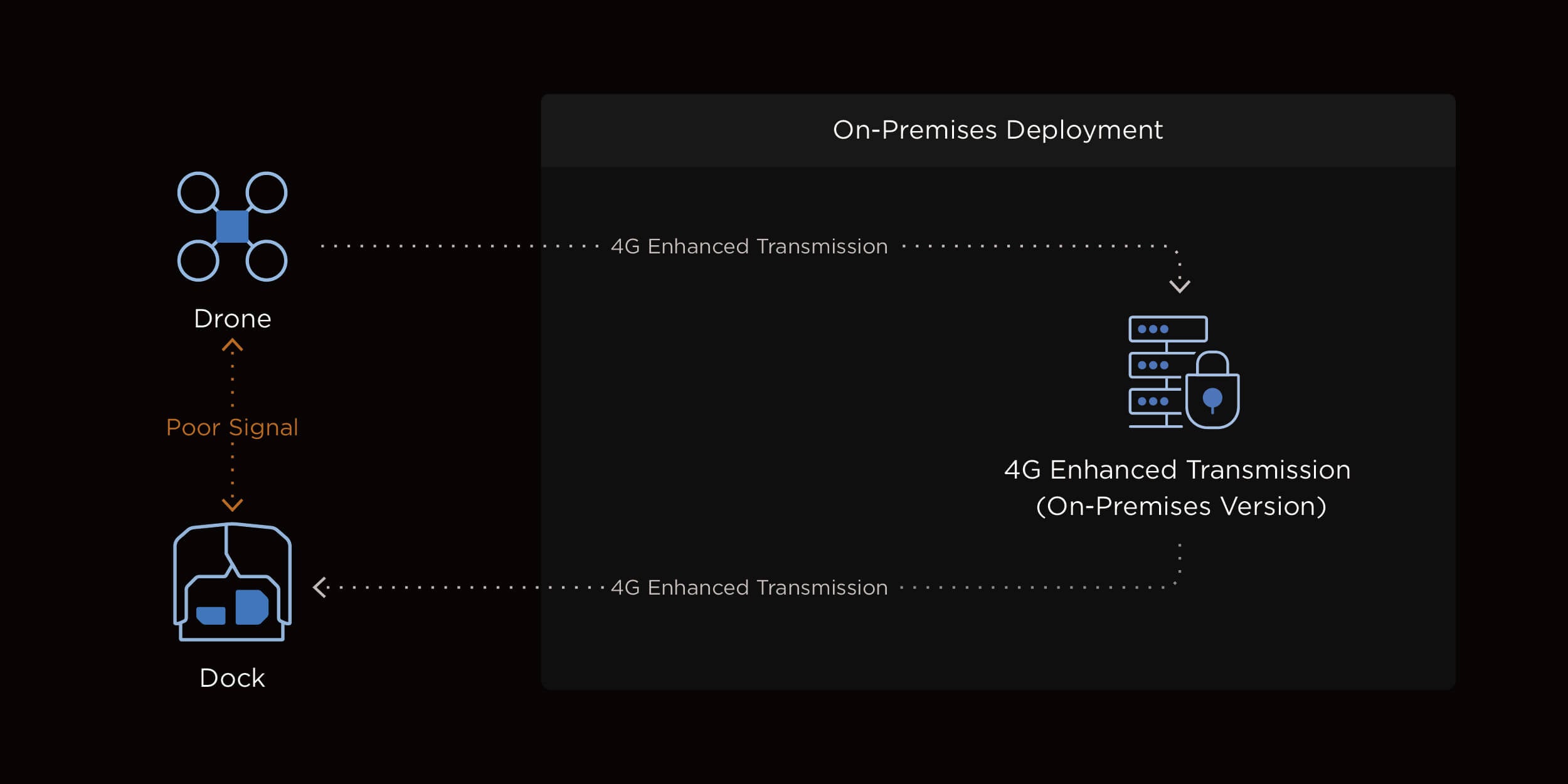

4G Dongle Private Deployment
With DJI Cellular Dongle 2 [21], the aircraft can connect to 4G networks. In complex operational environments, the 4G network works in tandem with O4+ video transmission system to ensure a stable transmission and enhance flight safety. 4G enhanced video transmission service can be privately deployed and used in conjunction with the FlightHub 2 on-premises version to further enhance the stability and security of data transmission.
Open Ecosystem, Breaking Boundaries
Intelligent Algorithm Developer
Provides the necessary model training tools and third-party developer certification process to access onboard computing capability, helping expand new drone intelligent algorithm application fields.
PSDK
E-Port and E-Port Lite encryption authentication ensure secure and worry-free payloads, enabling the Matrice 4 Series to have broader application scenarios.
MSDK
Mobile SDK 5 simplifies the development of apps to control the Matrice 4 Series. Mobile SDK 5 is fully open source and comes with production code samples of core DJI Pilot 2 modules, ensuring its reliability.
Cloud API
With DJI Pilot 2's built-in Cloud API (MQTT-based protocol) you can directly connect the Matrice 4 Series to third-party cloud platforms. Access the drone's hardware, video live-stream, and photo data without having to develop an app.
DJI Terra API
With the DJI Terra API, users can integrate its powerful mapping capabilities into their own platforms, achieving automated 2D and 3D reconstructions. Additionally, users can customize photogrammetry workflows as needed, allowing the Matrice 4E's operational results to meet the needs of various industry applications better.
